How to Install a Return Air Vent on a Wall
Return air vents are an important aspect of how your HVAC system will function properly, there’s no doubt about that. Installing a return air vent assists in circulating air, ensuring that temperatures are kept constant, and preventing your heating and cooling system from getting overloaded. Without proper return air vents in your home, your HVAC system will have to labor harder, driving up energy expenses and air pressure. It is easy to mount a return air vent onto the wall, and it can make your house more comfortable and efficient with your system.
Step 1: Planning and Measurement
The first and most crucial step is to determine where the return air vent needs to be. The vent should ideally be in the center on an inside wall to ensure maximum airflow. Mount the return vent away from doors, windows, or other areas that are most likely to have drafts since they could interfere with the balance of the HVAC system.
After you have decided where you want the location, make sure to measure the size of the vent grille that you are working with. The majority of return air vents standard are 12 x 12 inches to 20 x 20 inches, but measurement will vary with your system. Utilize the grille as a point of measurement and measure off the space of the wall that you will be cutting out. A well-planned location and measurement can simplify the entire process and have your HVAC system operational. This preparation is an essential step in how to install a return air vent in the wall properly.
Step 2: Cutting the Hole
With your marking done, it’s time to make a cut into the wall. Begin by utilizing a stud finder to verify there are no studs, electrical cables, or pipes behind the wall in the marking area. Safety first, so make sure to wear safety goggles and gloves here.
Using the jigsaw or drywall saw, cut slowly along the marked line. Carefully make sure that the edges are clean and straight as this will provide a straightforward way of mounting the grille. If you find any insulation, push it aside but don’t take it away. Clean the area so that there is no mess or destruction to the material surrounding it. This step is vital in return air vent installation as it sets the foundation for the vent to fit perfectly.
Step 3: Installing the Vent

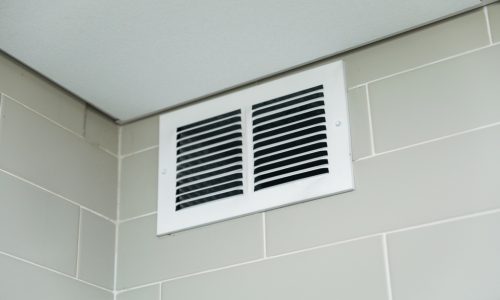

After preparing the hole, put the vent or return air grille over the hole. Level it properly so that it is snug and even. Installing a return air vent in a wall is straightforward if you ensure the grille is properly aligned. Fasten the grille with screws to the wall. Pre-drilled holes are in most vent covers, so it is a simple and effective procedure. If the vent is surrounded by a frame, mount it flush to the wall to prevent gaps or loose areas. For those seeking the best flush air vents for a seamless look, ensure the vent sits evenly with no protruding edges. Verify the stability of the installation before proceeding.
Step 4: Sealing
To provide the best airflow and air leak protection, seal gaps around the vent edge with weatherstripping or caulk. A tight seal, besides enhancing the HVAC performance, also prevents dust or debris from entering the system through the edges. Smooth out the caulk for a clean, professional appearance and allow it to dry fully before using your system. Safely sealed vents are critical to offering even airflow and avoiding energy loss.
Efficient HVAC Systems Start with Properly Located Vents
Installing a return air vent in a wall can make your house more comfortable, make your house more energy efficient, and extend the life of your HVAC system. Even though the work may be too much for beginners, these four steps can make it simple and yield wonderful results. But in case you are not sure about doing it yourself, it is always wise to hire an HVAC technician and take it off your shoulders. With proper planning and return air vent installation, a well-installed vent can work wonders for your indoor air quality and overall functioning of your home.
