How to Choose the Right Floor Vent Size for Your Home
Share
Floor vents may appear to be small components within a home's HVAC system, but proper sizing plays a critical role in airflow efficiency, temperature consistency, and overall comfort. An incorrectly sized floor vent can restrict airflow, reduce HVAC performance, create uneven room temperatures, and negatively impact energy efficiency.
Many homeowners focus on flooring, insulation, and heating or cooling equipment, and overlook floor registers and proper vent sizing. However, choosing the proper system vent size means that the conditioned air will arrive as intended at each system outlet. Flow vents that do not meet the system’s needs may result in poor performance of the HVAC system and uneven temperatures in different rooms. Poorly sized vents may even negatively affect the energy efficiency of the system.
There are some important concepts to know regarding vents/grills/registers, specifically the system of measurement for vents and the factors that will affect the size of the vents, in order to choose the proper size for a system vent.
Terminology of an HVAC System
The first step to choosing a proper vent size is to know the terminology of the HVAC system.
A vent is a broad term for an opening in the system where air may enter or leave a room. A vent cover with a damper that may be adjusted to allow control and adjustment of airflow is called a floor register.
Registers accomplish two primary functions:
1. They distribute heated/cooled air to a room.
2. They allow control of the volume and flow of air.
Because most floor vents are actually registers, the terms are often used interchangeably.
Maintaining HVAC Efficiency
An HVAC system is built to distribute a fixed volume of air. Vent registers are the endpoint for that volume of air.
If the vent register is undersized, the system will be forced to work inefficiently and consume more energy due to the restriction in airflow.
When vent registers are sized properly, the air continues to flow and is distributed to all areas of the home in a more controlled fashion.
Improving Indoor Comfort
Uneven distribution of airflow causes uneven heating and cooling of all of the rooms in a home. Some rooms may not have enough airflow and may feel warmer in the summer and colder in the winter.
Uneven flow of air may result in poor comfort and satisfaction of the occupants. Sizing vent registers properly helps to ensure consistent temperatures across all rooms of the home.
Reducing System Wear
HVAC systems are mechanical and therefore have a defined lifespan. Straining any mechanical system will accelerate its inevitable breakdown.
Sizing vent registers properly is a good way to promote the system's reliability and the effectiveness of the HVAC system.
How Vent Sizes are Measured
The sizing of vent registers is typically done incorrectly.
Measure the Duct Opening and Not the Cover
Sizing of vent registers is done to the opening and not to the cover of the vent system.
A 4" x 10" vent register is sized to a 4" x 10" duct opening.
The cover of the vent may be larger than 4" x 10".
The design of the outer frame refers to the way it can overlap complete openings.
You must remove the current register before you can measure.
The Process of Measuring
Stage 1: Removing the Current Register
The current floor register must be lifted to fully expose the duct opening.
Stage 2: Measure the Width and Length
You can now measure the internal dimensions of the duct opening with a tape measure.
The relative widths or lengths need to be recorded.
These need to be measured in inches.
Stage 3: Measure Again
Once you are confident in your measurements, you can now purchase a replacement register.
Register fitting issues can occur with even the smallest of measurement errors.
Floor Registers Commonly Used in Residential Spaces
Register dimensions can be standardized, resulting in several sizes of registers that are commonly seen in residential construction. These include:
3" x 10"
4" x 8"
4" x 10"
4" x 12"
4" x 14"
6" x 10"
6" x 12"
6" x 14"
Of all the register dimensions commonly used in residential construction, the 4" x 10" register is most commonly seen.
Airflow requirements are often unmet with smaller duct openings in larger spaces, thus necessitating larger register sizes.
What to Do with Registers that Do Not Fit the Standard
If a property is custom-built or older, it may have non-standard duct openings.
There are several options:
The most precise solution is a custom register.
Custom fabrication of floor registers can be used to match design and construction requirements of custom interiors and existing flooring.
Standard registers can be achieved through modifying duct dimensions, which is often an economically better solution than custom registers.
An HVAC trade professional may also modify the duct opening to a more optimal size register that is readily available.
Any changes must uphold the integrity of the HVAC system.
Selecting the Correct Register Style
In addition to register size, the style of a register can also impact functionality and aesthetics.
Types of Registers
Adjustable Registers
Adjustable registers contain dampers.
They are highly effective and easily adjustable in most residential settings to assist in the balancing of temperature among various rooms.

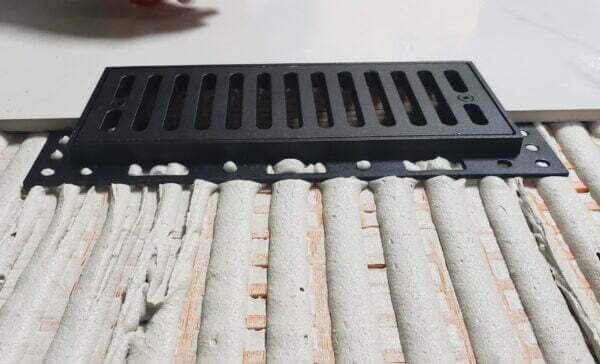

Flush-Mount Registers
Flush-mount registers are installed level with the floor and completely integrated with the surrounding flooring.
They are especially popular in homes with wood and tile flooring due to their aesthetic and efficient airflow.
Decorative Registers
Floor registers that are decorative integrate style and function.
They can be found in a range of materials and finishes that offer different styling options for interior design, including cast aluminum, brass, cast iron, and steel.
Heavy-Duty Registers
Commercial-grade and heavy-duty residential registers have the strength and durability required to be placed in areas that have a high level of foot and furniture traffic.
Choosing the Best Material
There are many different materials to choose from, each offering different advantages that can be matched with design preferences.
Steel
Strong and durable
Good for high traffic areas
Offers many finishes
Aluminum
Lightweight and rust resistant
Good for kitchens and areas that may have moisture
Wood
Good for custom installations
Natural with hardwood flooring and available in many species and finishes
Brass
Corrosion-resistant and good for traditional interiors due to its elegant appearance
Cast Iron
Very durable and good for homes of a more antiquated style
Vent Size and Room Requirements
The size of a room can impact how much airflow the room needs.
Generally, larger rooms require:
Larger ducts
Larger registers
Increased airflow
Standard registers may be sufficient for smaller rooms.
HVAC design professionals look at a variety of factors to determine the airflow needed for specific spaces, including:
- Dimensions of the space
- Height of the ceiling
- Levels of insulation
- Area of the windows
- Weather
Unless there are alterations to the HVAC system, the general rule for replacing a vent is to match the size of the duct system.
Mistakes to Avoid
Using Faceplate Dimensions to Make Purchases
Always look for the vent opening, not the visible part of the vent cover.
Airflow Obstructions
Floor vents should not be covered by rugs, furniture, or decorations. Obstructing vents makes HVAC systems work harder.
Favoring Design Over Function
While decorative vents may aid in the design of the space, they must still allow for sufficient airflow.
Neglecting Damper Quality
The quality of dampers is important. Poor dampers may rattle or stick. Dampers that are strong and smooth will operate and hold their shape better.
Conclusion
Choosing the proper floor vent size is important. Duct opening size must be properly measured, airflow must be accounted for, and the breadth and style of the vents must be considered. Everything contributes to the performance of an HVAC system and comfort in a space.
Properly sized floor vents are attractive, aid in achieving even room temperatures, and promote efficient airflow. Whether upgrading to decorative vents or simply replacing worn-out vents, sizing must be prioritized to ensure that HVAC systems will function efficiently and as intended throughout the home.
