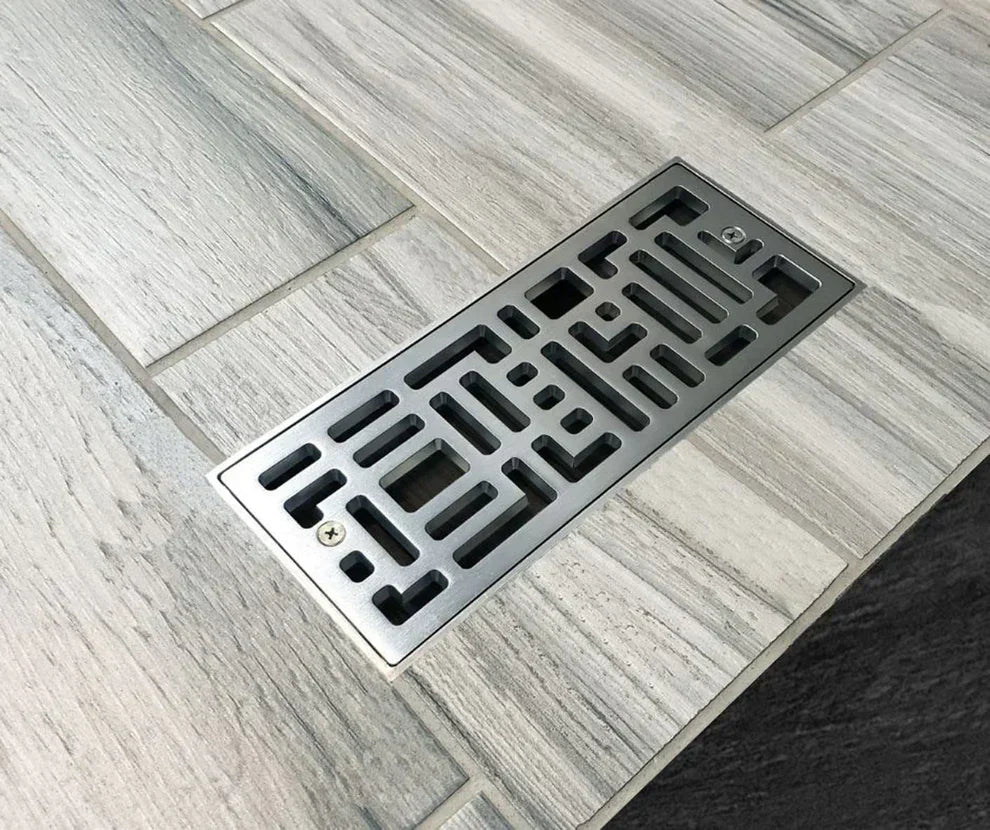

How to install and maintain a Tornado flush-mount metal floor vent/register?

The Tornado series is crafted for homeowners, tradepeople, and interior designers who want to incorporate both bold detailing and structural durability. Unlike standard drop-in covers, tornado flush-mount metal floor vents are designed for direct integration into the flooring system. Proper installation is important because this style becomes part of the flooring itself and does not just sit on top of it. With the right approach, your metal floor vent will perform efficiently as well as maintain its architectural appeal.

Some Tornado models are available with an integrated damper. These allow you to adjust airflow directly from the vent opening.

Other Tornado models are available in a no-damper version. These provide consistent, performance-driven aesthetics and unrestricted airflow for HVAC systems that are already balanced.

Confirm smooth operation if your selected model includes a damper before regular use.

Once installed, your Metal Floor Vent will perform to its full potential while keeping its architectural beauty.

How To Install The Tornado Flush Mount Metal Floor Vent

Planning Prior To Flooring Installation

To properly position tornado metal floor vents, they must be installed during new flooring installation or during major renovations. They cannot be retrofitted when the floor is completed. First verify the size of the duct opening. Measuring accurately will allow proper alignment of the mounting frame with the duct boot and subflooring.

Next, check to see if the ducting below is adequately fastened down and centered. A solid base is important so that the Mount Frame can attach directly to the subflooring.

Screw Down the Mounting Frame

Next, insert the Tornado mounting frame into the cutout you have previously prepared. Use a level to confirm that it sits perfectly flush with the nearby surfaces. Even the slightest tilt could alter the final appearance

Changing the angle of the register or slightly tilting can change its appearance.

After aligning the frame to the sub-floor, fasten it to the sub-floor with appropriate screws, noting that over-tightening could distort the metal frame, thereby reducing the stability and overall support of the register. Fastening must be done securely and evenly to maintain balance of the metal frame between the finished floor and the frame.

Once the frame has been securely affixed to the sub-floor, install your finished flooring (hardwood, engineered wood or tile) to enclose the area around the edge of the frame to form a seamless transition from the vent cover to the finished floor.

Insert the Tornado vent

Next, insert the Tornado Pattern insert into the frame after the flooring is finished and sealed. The insert should be level on all four corners and not rock or wobble. Check for proper air movement through the grate before completing the installation.

Some models of Tornado Vent grilles have a built-in damper; therefore, you can adjust the airflow output directly from the vent.

Some models of Tornado vent grilles do not have a damper built-in; these grilles provide unrestricted and stable airflow to HVAC systems that are already balanced.

Before you use your vent grille on a normal basis, make sure that if you purchased a vent model with a damper, that the damper operates smoothly.

Cleaning the Tornado Metal Floor Vent

Routine Surface Cleaning

Metal vents are installed flush with the finished floor surface, thus, will normally collect dust, lint, and small debris. To remove any debris, vacuum the vent grille with a soft brush attachment on your vacuum at least once per month.

You will also want to vacuum your insert, use a microfiber cloth, warm water and soap to clean the insert (not bleach or other harsh ingredients) every few months Poof.

After the cleaning is done, let the insert fully air dry before reinstalling it into the Mount Frame. If moisture remains after cleaning the insert, this could cause rust to form inside of your ducts and cause them to fail earlier than expected.

If you have a damper, check to see if debris/dirt is blocking the dampers and cleaning them will ensure free movement for proper ventilation of your HVAC system throughout temperature changes.

Safety Protocols

Do not place heavy items directly onto your Vent Cover; although it is made of durable metal, extended weight can cause the cover to bend and affect how well your HVAC works (it can cause your AC to operate improperly).

Check your vent cover to ensure that it is properly level to your floor once each year. Natural expansion and contraction of your wood floor can cause a very tiny amount of movement: If you notice any gaps between the floor and the vent cover you should make sure that they are corrected immediately; otherwise, it may contribute to premature failure of your vent cover.

Importance of Correct Installation and Service

The Tornado's aesthetic is only one part of the design; it is derived from how it connects with the additional equipment, to keep air moving through your building and help maintain equal airflow across the different areas of your system.

Metal Floor Vents that are installed properly and serviced consistently will also improve overall performance and visual appeal. Following the proper steps when installing and implementing a basic preventive maintenance program will ensure that your Tornado Register will provide you with continuous, reliable airflow and a unique appearance for years to come.
