How to Measure Floor Vent Sizes Correctly Before Buying

Purchasing a new floor vent may appear straightforward, but if the size is incorrect, it can cause gaps, shifting, poor airflow, and design issues. Making sure you measure accurately will help the homeowner find vents that are snug and operate properly with the heating and cooling system.

It is important to know what to measure when replacing an old floor vent or when doing a new installation.

Why It is Important to Measure Floor Vents Accurately

Floor vents are made for specific spaces. A vent that is too small may slide if someone steps on it, while a vent that is too big may not fit into the opening.

If the measurements are incorrect, the vent may leave gaps around it. Measurements must be accurate for flush floor vents because they need to be flush with the surrounding floor.

Measure the Floor Opening First

Start by taking out the current vent in a careful manner. Doing this will lead you to the opening that connects to the HVAC duct. Next, make use of a tape measure to obtain the inside length of the opening from one end to the end, and then take the width of the opening from one side to the other. Be sure to keep track of the two measurements in writing. It may prove to be useful to measure twice in order to lower the chances for mistakes that are due to misreading the tape while measuring.

When measuring, for example, the opening may show a width of 4 inches and a length of 10 inches. Selection of the new vent will be based on both of the used measurements along with the size information of the manufacturer.

Do Not Measure Only the Old Vent Cover

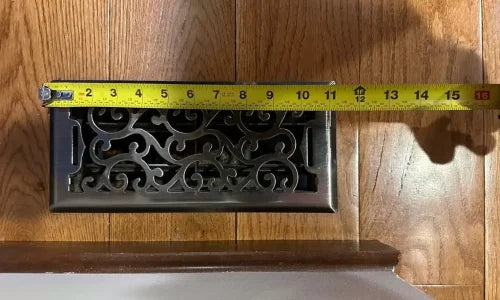

It is common to get the exterior measurements of the current vent and rely on these values when purchasing a new vent. However, it is worth keeping in mind that the size from the outside includes the frame or lip that sits on the floor.

Remove the old vent whenever possible and measure the opening underneath. Check the product's sizing guide before placing an order because manufacturers may describe dimensions differently.

Check the Depth

When selecting a flush mount floor vent, depth becomes critical. The vent should fit into the floor perfectly without protruding above the floor level.

The depth of the opening must be measured from the finished floor level down into the recess. In new floor installations, the thickness of the flooring must be taken into account too.

All kinds of flooring materials differ in thickness, such as hardwood, tiles, laminate, and stone. The vent frame must be compatible with the finished floor level.

Do Not Forget About Length and Width

Make sure your level tape measure is straight when measuring.

If the opening does not appear even, take the length measurement at multiple locations. You will need to repeat this step for the width measurement. Keep in mind that older floor openings may not always be perfectly square.

If measurements are close, go for a smaller number and verify the required size with the manufacturer’s fitting instructions before proceeding with your purchase.

Check the Shape of the Opening

While most vents come with rectangular openings, you may also get some irregular ones as well.

Therefore, don't jump to conclusions that the styles of your vents will always be similar.

Take a careful look at the openings, and check for unusual shapes or designs.

When floor vents are specially customized, these may also be of help when the openings don't match.

Use Nominal Dimensions

In some cases, floor vent companies provide the measurements of the duct openings instead of the finished vent size.

To illustrate, an item may come in a certain size, but it may be a little bit bigger due to the extra frame around it.

How to take the measurements for Flush Mount Floor Vents

Flush mount vents require special instructions because they are seated inside the floor.

Measure the width, length and depth of the compartment.

Make sure that the frame is installed tightly.

Consider Airflow Along With Size

The right dimensions are important, but dimensions aren't everything. A vent must also be able to accommodate the airflow made by the HVAC system.

You will need to check whether the vent is intended for supply air or return air. Supply vents bring air into the room while return vents help air travel back towards the HVAC system.

Conclusion

Getting floor vent measurements right prior to purchasing saves time and money in addition to avoiding troubles during installation. You should always measure the floor opening instead of measuring the old vent cover alone. Don't forget to take care of such measurements as length, width, depth, flooring thickness and shape.
