How to measure for the correct vent size

Measuring for the correct vent size is a simple process, but small mistakes can lead to poor fit, airflow restriction, or repeated replacements.

If you walk into a hardware store with a measurement of the metal plate sitting on your floor, you are going to buy the wrong part. It happens to almost everyone. You get home, try to drop the new one in, and it’s either way too big or it falls right through the hole into the dark abyss of your ductwork.

The big secret? In the HVAC world, the "size" of a vent has absolutely nothing to do with the decorative part you see. It is all about the plumbing under the floor. If you're measuring the outer size of your old vent cover, you’re already setting yourself up for failure.

The correct approach is simple but precise.

 If you want a perfect fit—especially if you are eyeing those high-end flush-mount vents that sit level with your hardwood—you have to change how you look at the hole in your floor.

The Only Rule That Matters: Forget the Faceplate

Stop measuring the vent cover. Seriously. The metal or wood plate you walk on is technically called the "faceplate." It is designed to be much larger than the actual duct so it has a lip to rest on.

The Only Rule: Forget the Faceplate

Seriously, stop measuring the vent cover. The metal or wood plate you see is called the "faceplate." It’s purposely built much larger than the duct so it has a lip to rest on.

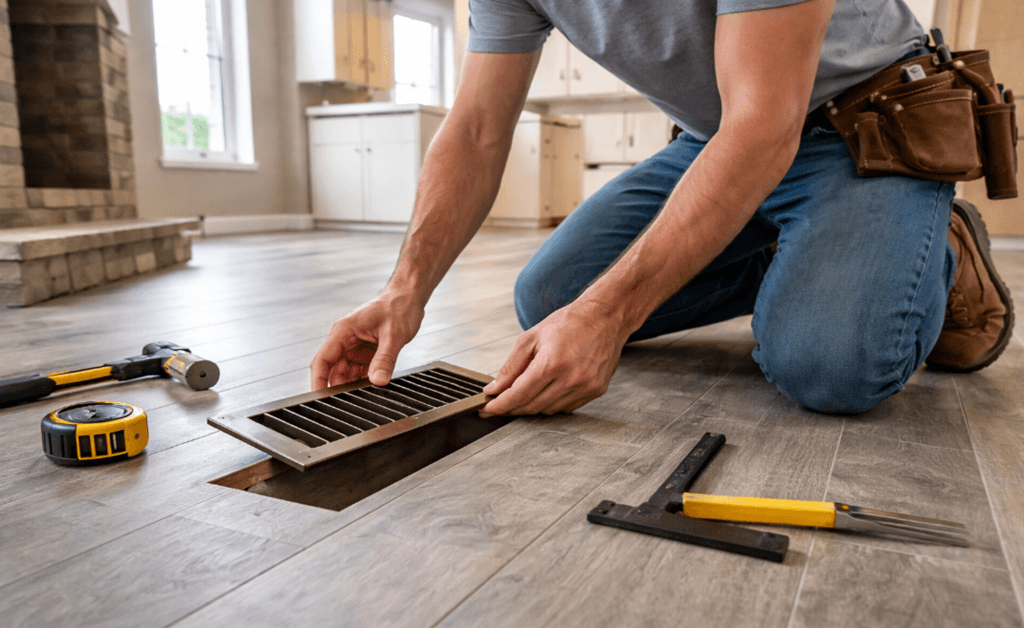

Step 1: Pull the Old Hardware Out

Start by removing the current vent cover completely. Do not attempt to measure while the vent is still in place.

This is important because the visible cover does not reflect the actual duct size. Measuring over it will give incorrect dimensions. Do not measure your existing vent cover. Always measure the duct opening underneath.

You can’t get an honest measurement with the old register still in the floor. Most floor vents just sit there, held by gravity. But, over the years, things like spilled juice, floor wax, or old paint can "glue" the vent down.

Don’t just jam a screwdriver under it and pry; you’ll chip your hardwood. Instead, take a sharp utility knife and score the edge where the metal meets the floor. Once that seal is broken, lift it out. Now, give the hole a quick vacuum. You need to see the raw metal of the duct box (the "boot") without a layer of 20-year-old dust in the way.

Step 2: The Metal-to-Metal Measurement

After removing the vent, you will see the duct opening clearly. This is the area you need to measure.

Grab a stiff, metal tape measure. Avoid those soft fabric tapes used for sewing; they sag, and in a pressurized air system, an eighth of an inch actually matters.  The actual vent cover will always be slightly larger than the duct opening. This is intentional and allows the cover to sit securely. Do not choose a smaller size thinking it will fit better. It will not cover the opening properly.

The Short Side (Width)

Place your tape measure against the inside wall of the metal duct. Stretch it across to the opposite inside wall.

• Don’t measure the wood of the subfloor.
• Don’t measure the carpet padding.
• Do measure the clear air gap between the metal walls. In most modern homes, this is exactly 4 inches.

The Long Side (Length)

Most duct lengths are standard diameters of 10, 12, or 14 inches. Any number that seems odd, like 9.75 inches, is generally the case that the metal boot has a slight crush or warp. So, just round to the next standard size (10 inches) above.

Step 3: Fix Warped Ducts on the Fly

Ducts get stepped on and bent over the years. If you measure the middle of the hole and get 3.75 inches, but the ends are 4 inches, the metal is just pinched. You should still buy the standard 4-inch vent. Just grab a pair of pliers and pull that metal back straight before you try to drop the new vent in. It’s a five-second fix that saves you a return trip to the store.

Use the following rules:

• If measurement is .5 inch or lower → round down
  Example: 3.5" → 3"
• If measurement is .55 inch or higher → round up
  Example: 3.75" → 4"

Installation Styles: Why Flooring Matters

What you’re standing on determines how much "wiggle room" you actually have.

Standard Drop-In Vents

If you have carpet or tile, you’re likely using a drop-in vent. These have a wide lip that sits on top of the floor. They’re very forgiving. As long as the "box" part of the vent fits into the hole, the lip will hide any messy or slightly oversized cuts in the carpet.

Flush-Mount Vents

These sit perfectly level with your wood floor. There’s no lip to trip on. This is "Expert Mode."

• The Depth Factor: You don’t just need the 4x10 measurement; you also need to know exactly how thick your flooring is (usually 3/4" or 1/2").
• The Fit: Because there’s no overlapping lip, your measurement of the duct opening must be dead-on. If the hole is too big, you’ll have a permanent gap that collects dirt and pet hair.

Why Accurate Sizing is a Financial Move

It’s easy to think that a "close enough" fit is fine. It isn't. Your HVAC system is a pressurized loop.

Dealing with Weird or Historic Ducts

If you live in a house built in the early 1900s, you might find some very strange sizes—like 5x13 or 8x15. You won’t find these at a big-box store.

You have two choices:

1. Custom Fabrication: Some companies laser-cut steel or wood vents to any size. They’re expensive, but they save you from having to tear up your floor to resize the duct.
2. The "Frame-In" Method: An HVAC tech can sometimes install a "reducer" that sits inside the old, large duct and provides a standard 4x10 opening for a modern vent.

Checking for Depth and Obstructions

Look down into the duct. Is there a sharp turn or a pipe immediately below the floor level?

Many vents have "dampers"—the sliding metal flaps that let you open or close the air. These flaps need room to swing. If there is an elbow in your ductwork right at the floor, a deep vent damper will hit the metal, and it will not sit flush.

Common Pitfalls

Measure Every Room: Don't assume every vent in your house is the same. It's common for builders to use 4x10 in bedrooms and then 4x12 in the living room.

The Baseboard Trap: If your floor duct is right up against the wall, check the distance to the baseboard.

Conclusion

Sizing a vent isn't difficult; what's needed is a bit of care. The one measurement you need to remember is the duct opening itself, not the vent. Everything else, including size-matching, rounding, and any obstructions from the installation, will fall into place.

Balanced airflow and fussy installation problems will become a thing of the past. That's what happens when you take the time, technique and right strategy to measure correctly.
