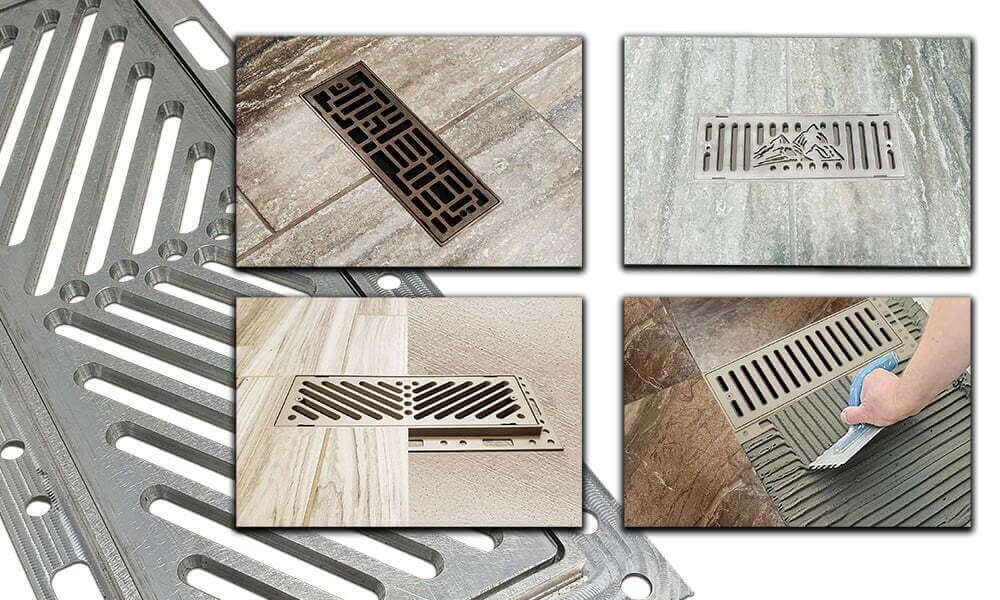

How to Replace Old Floor Registers Without Damaging Your Flooring

High traffic areas require floor vent covers that are more than just pretty to look at. Hallways, entryways, kitchens, and family areas can all have multiple people walking over them during the day. Floor registers also have to deal with pets, kids, and all the everyday spills and cleaning and moving of furniture.

Considering all of the above, beauty of the cover is not the most important thing. The cover needs to be strong, and have good airflow when installed. Once the vent is in place, it should be easy to take care of and install.

Why High-Traffic Areas Need Durable Floor Vents

Floor vents experience direct pressure from foot traffic. A weak or poorly fitted cover can shift, bend, rattle, or become damaged over time.

Hence, High-traffic areas need durable floor vents. When you have a lot of people walking over them on a daily basis, vents get a lot of foot traffic and can create problems with poor covers. Ideally, covers should slide in and out of the opening created by the HVAC and stay in place.

Common materials that are used to make durable floor vents are steel, aluminum, brass, and cast iron. These can all be used depending on the specific needs of the room.

Get Yourself Prepared Before You Begin

Having the right tools on hand is important to avoid accidental damage.

Consider getting:

• A flat-head screwdriver.
• A putty knife or a plastic pry tool.
• Measuring tape.
• Soft cloth.
• Vacuum cleaner.
• Soft brush.

Plastic pry tools minimize scratches caused by metal tools on hardwood, laminate, and vinyl.

1. Switch off the HVAC

Before removing any floor register, shut off the heating and cooling system.

When a register is removed, air breathes in (bringing dust) and debris falls on (and gets sucked into) air blowing out, so this step prevents the registers from causing a mess.

2. Carefully Remove Registers

Registers should be gently removed.

Tightly fitted registers should be removed by using a flathead screwdriver or plastic pry tool by sliding the tool under a side and lifting the register.

Caution should be taken as paint or dirt may be sticking the older registers to the floor. Use a putty knife to slide the register up without ruining the surrounding floor.

3. Clean the Duct Opening

The opening should be vacuumed to clean pet hair and debris. Also, use a soft brush to go around the edges and clean the surrounding floor with a soft cloth.

A clean opening helps registers to be installed straight.

4. Measure Duct Openings Correctly

The most common beginner mistake is to measure the old register instead of the duct opening.

Measure the opening by taking the following:

• The length
• The width
• The depth if installing a flush mount register

Keep these measurements written down for easy replacement.

Floor Vent Measurement Guide

Your final measurements should always be checked against manufacturer’s measurements.

Step 5: Check Flooring Thickness

When you are replacing flush mount floor vents, floor thickness becomes important.

Hardwood, laminate, tile, and stone floors all have different thicknesses. The replacement vent should be even with the finished surface of the floor.

If you ignore floor thickness, then you may end up with gaps or vents that are too high.

Step 6: Choose the Right Type of Register

Not every floor opening uses the same type of vent.

Standard Floor Registers

Standard vents are easiest to replace because they sit above the floor opening.

Best used for:

• Existing floor HVAC openings
• Quick replacements
• Most residential flooring

Flush Mount Floor Registers

Flush mount vents fit inside flooring and create even surfaces.

Best used for:

• Hardwood flooring
• Tile flooring
• Laminate flooring

Step 7: Protect Hardwood Floors During Installation

Because of the nature of hardwood, it’s easy to scratch so you need to keep that in mind.

Protecting hardwood surfaces is easy when:

• You lay tools on a cloth
• You avoid sliding metal along the surface
• Lift vs slide the register

Before securing a flush mount vent, make sure that the opening is level with the surrounding floor.

Step 9: Evaluate Stability and Airflow

Check for:

• Rattling
• Movement
• Unevenness
• Airflow Blockage

The register's stability will keep your home more comfortable and stop premature wear.

Conclusion

Old floor registers can be removed without significant damage to the hardwood, tile, laminate, or stone floors. Using the correct measurements and the proper floor registers can protect the floor when installing the new floor register and improve the appearance of the room.

Standard floor registers or decorative flush-mounted vents, when installed properly, do provide a strong, firm fit while maintaining airflow of the HVAC system. A well installed floor register can become a decorative finishing detail that complements the flooring and continues to work well for years.
