How to install and maintain a Breeze Flush-mount Metal Floor Vent/Register?

A perfectly clean finish for any flooring design will result in an attractive finish for floor vents. Breeze Flush Mount Metal vents provide this type of finish by staying level with the floor as opposed to fitting on top. Creating a finished floor with a seamless finish allows flooring and the vent to become one piece of flooring that offers a complete, flush look for both commercial and residential spaces.

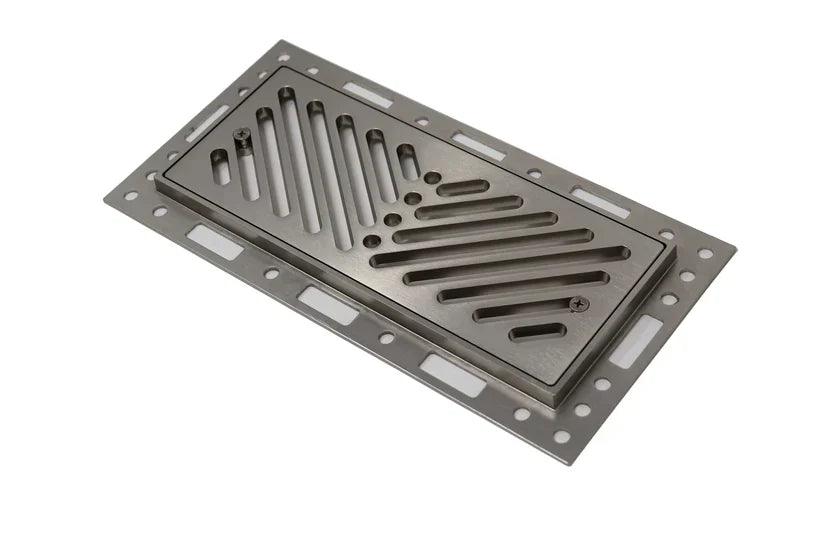

The Breeze Metal vent is made of durable, powder-coated flat sheet aluminum. The test stresses for the durability of this material demonstrated that it would hold over875 lbs without bending. This indicates that this vent will be suitable for high traffic areas and will provide a long life under the most demanding conditions. This metal floor vent will not crack, rust, chip or peel while maintaining its appearance in any supporting wall or floor system.

The Breeze pattern is a classic and contemporary design that lends itself to all types of design styles. The pattern is also a good fit for all styles of flooring including traditional hardwood, sleek tile and many types of laminate flooring.

These Flush Mount Metal floor vents work well with tile, laminate, hardwood, luxury vinyl plank (LVP) and carpeting.

Unlike surface-mounted covers, these flush-mount metal floor vents are built to sit level with the finished Floor. They will be flush along with your new finished floor, giving your home a streamlined look while allowing for more efficient airflow by integrating the vents into the flooring system. This means it is important to install these vents properly and take care of them for both effective performance and aesthetics.

Some Breeze models are available with an integrated damper. These allow homeowners to regulate airflow directly at the vent opening.
Other Breeze models are available in a no-damper version. These provide continuous, unrestricted airflow for HVAC systems that are already balanced.

If your selected unit includes a damper, you need to test its movement before regular use for smooth adjustment.

Preparing for Installation

Flush Mount Metal Floor Vents are intended to be used only when installing new floors or doing a major renovation. They cannot be dropped into place after the flooring is complete. Measure the duct opening very carefully.

Double-check that your measurements and those of your selected Breeze Metal vent model are the same so that the two are correctly aligned when the vent is installed.

Check that the duct boot below the subfloor is centred and securely fastened in place. A stable foundation for the Mount frame will help keep it level over time and fully supported.

Be sure to clean the area around the Mount before beginning to install the Mounting Frame. Any dust or debris located beneath the Mount Frame could affect how flush your unit is upon completion of the installation.

Installing the Mount Frame

After preparing the subfloor opening, place the Mounting Frame from the Breeze Metal Floor Vent into it. Use a level to check that the Mounting Frame is flush on all sides.

Secure the Metal frame to the subfloor with appropriate screws. Do not apply excessive pressure to the frame, as this could distort it. It must be held securely while preventing it from bending during use, just like all of our other Breeze models.

On some Breeze models with an integrated damper, homeowners are able to regulate how much air goes through the vent from the actual vent itself by controlling how much air flows through the damper. In many instances, a no-damper option for Breeze models will provide continuous and unrestricted airflow in unpredictable amounts through already-balanced HVAC systems.

If your unit has an integrated damper, test it each time that you use it to make certain it opens and closes easily, without any resistance.

Routine Maintenance for Long Lasting Performance

Metal Floor Vents are installed at the ground level; thus, they are able to collect dust, lint and very small debris on a regular basis. A well-maintained vent will provide optimum air-flow efficiency and extend the life of its finish, and will keep your home clean.

You need to vacuum your vent cover at least once a month using a soft brush vacuum attachment. Cleaning Vent Covers often will increase their ability to catch debris prior to being introduced into the ductwork which will help prevent them from putting undue strain on the system. Vent covers should never be cleaned with a hard bristle brush or bricks as they scratch and/or create permanent damage to the surfaces of the vent cover but are not effective in removing dirt particles.

Proper cleaning would entail removing the insert from the Mount frame and wiping it down with a damp cloth soaked in soapy warm water.

You should never use harsh chemicals, acids, or abrasive scrubbing pads as they may remove any protective coatings which will reduce the life of your Metal Floor Vent!

Prevent the Breeze Vent from Being Used for Future Use

Never place large items on the Vent Cover; although they are strong enough to bear weight, excessive weight could distort or limit the flow of air through them. If you have an area rug covering the vent, check that there is free movement of air under the rug because limiting the air flow will have a negative impact on the efficiency of the HVAC system.

At least once per year, inspect the vent frame and ensure it is still flat against the adjacent floor surfaces. The expansion and contraction of the wood floor due to temperature changes causes the floor to shift slightly throughout the year. Additionally, fixing any gaps in your flooring promptly will allow your home to retain its appearance and structural integrity.

The Long-Term Value That Comes From Proper Care

Breeze Flush-Mount Metal floor vents were designed with an understated aesthetic to provide stable airflow performance. Proper ding-to-vent installation will make for a smooth integration to floor(s), and if they continue to be well maintained, they will maintain their level of performance and aesthetics over time.

Breeze style vents come with two functional choices, one is a vent with a built-in damper allowing for adjustable airflow control and the other is a vent without a damper allowing for constant, unrestricted air flow.

Installation methods differ based upon flooring type; for all tile jobs, spread thinset over the subfloor (wood or cementious board) before centering the aluminum frame over the duct opening. Lightly press the thinset into the frame while applying some additional thinset to the outside edges of the frame, then cut tile as necessary and set around the edges of the frame. After the tile has set and dried you will need to install the grille insert to finish out your tile installation.

Conclusion

There is little maintenance required for your breeze vents. Regularly vacuuming with a soft-brush attachment will keep dirt and debris from accumulating on top of the surface. If your vents require a more detailed clean, simply pull the insert out and use mild soap and water (never a harsh chemical) to clean the vents.

In addition to being a great decorative addition to your home, every Breeze meta vent is backed by a lifetime warranty to the original purchaser against product defects due to manufacturing. This provide an economical long-term solution for both air flow efficiency and design.

If you adhere to these installation principles as well as developing a routine of cleaning your Breeze vent on a regular basis, you will have a beautifully designed vent delivering precisely the right amount of airflow balanced over and over again for many years.
