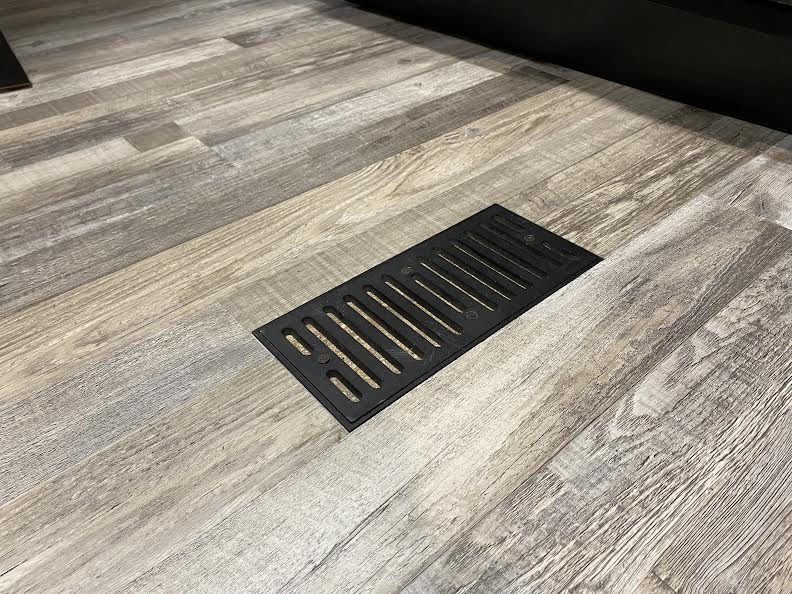

How to Install and Maintain Kanyon Forest Flush Mount Metal Floor Vent/Register

The Kanyon Forest Flush Mount Metal Floor Vent is crafted for adjustment-driven performance, sustainability, and hyper-customization - all without sacrificing design continuity. They are different from traditional fixed-frame registers; the Kanyon series features an adjustable height assembly that allows the vent to sit perfectly flush with virtually any finished floor surface. They go great with tile, laminate, hardwood, LVP, or carpet. These kanyon vents adapt to your flooring thickness and maintain a seamless finish.

One of the biggest advantages of Kanyon Ventiques is that they can be used in situations where the finished floor has already been laid, making them an excellent solution for remodels, upgrades or retrofits where traditional Flush Mount Metal Floor Vents are not feasible.

How to Adjust the Height of Kanyon Forest Flush Metal Mount Vent/Register

The Kanyon Ventique has a spacer system that allows for custom height adjustment. Hence, regardless of the type of your finished flooring, you can adjust the vent's height to match. Each unit contains a grille frame, grille insert, and three spacers. Height adjustments range from 1/8 inch (3mm) to 1 inch. To adjust the height, begin by removing the grille and grille frame using the four provided screws. Once removed, add or remove spacer(s) to reach the exact finished flooring height. Additional spacers and flanges can be purchased separately for hyper-personalization.

Installation Process for Kanyon Forest Vent

Start by measuring your duct opening length and width in inches to confirm the appropriate Register size. Proper measurement ensures a secure fit within the existing floor cutout.

Place the adjustable frame into the duct opening and verify alignment. Because the Kanyon series is designed for already-installed flooring, minimal modification to the surrounding surface is typically required. Once positioned, secure the frame according to installation guidelines.

After securing the base, determine the correct height by testing spacer combinations. Add spacers beneath the grille frame until the top of the vent cover sits Flush with the finished Floor. Once the desired height is achieved, reattach the grille frame and insert using the four screws.

Some Kanyon Forest models are available with a built-in damper for adjustable airflow control.
Other Kanyon Forest models are available in a no-damper version for consistent, unrestricted ventilation.

Confirm proper airflow functionality before completing installation.

Strength and Durability of the Material

Flush Mount Metal Floor Vents are made with Powder Coated Aluminum that will not bend, crack, rust, chip or peel under normal conditions. The baked-on finish gives these vents resistance to normal daily wear, making them suitable for both residential and light commercial application.

The Forest pattern gives a unique visual appeal while maintaining the structural integrity of the vent. The detailed design matches many styles from modern to rustic in a living space.

Maintenance Guidelines for Preserving Functionality Aesthetics and Air Flow Versatility.

Routine maintenance will help to maintain airflow efficiency as well as the appearance of the vent.

Metal Floor vents are installed flush to the floor and sit at the level of the floor. It is advised that the vent cover be cleaned on a regular basis with a vacuum equipped with a soft brush attachment. Use a mild soap and water solution and a soft cloth to clean the covering grid. Avoid the use of any harsh and/or abrasive chemicals to prevent damaging the powder-coated finish.

If your unit includes a damper, please check that the damper is clean and moves freely. Remove any debris that will obstruct clear and sufficient control of airflow.

Please also ensure that your spacers are in order, and that the screws are tight. After a period of time, floorboards will expand and contract so some minor adjustments may be required for your spacers to achieve a perfectly Rest position.

Conclusion

The Kanyon Forest Flush Mount Metal Floor Vent remains a superb, fully adjustable, and flexible solution to new and adaptive vents that integrate seamlessly with any finished floor surface. Ideal for use with all floor coverings, includes adjustable height to 31mm, and is made from a powder-coated durable aluminum.

The Metal Floor Vent will provide the required ventilation when installed and maintained to a proper standard, while the view of the finished floor will remain unobstructed and clean.
